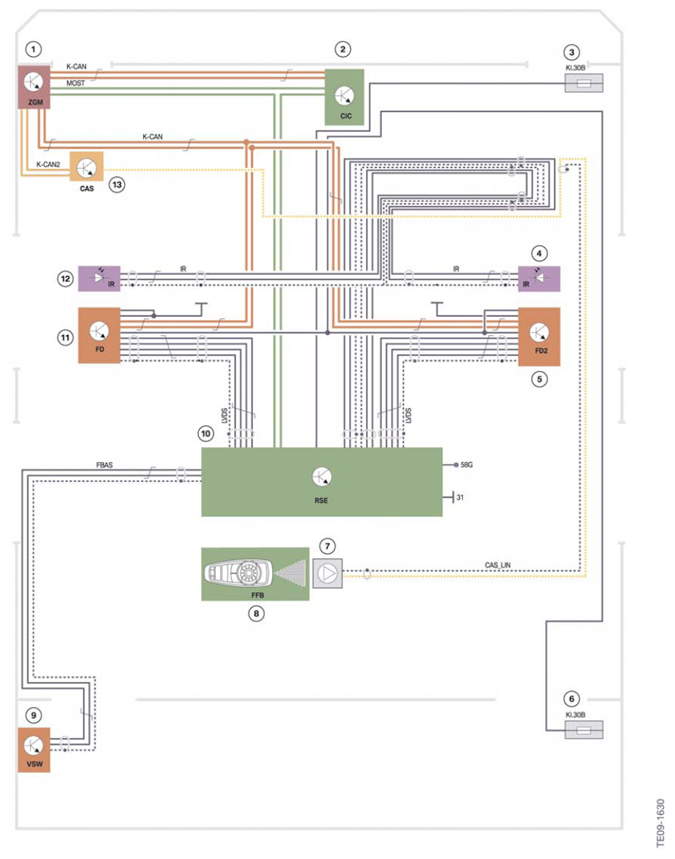

5.2.1. System wiring diagram
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Central Gateway Module |
| 2 | Car Information Computer or Car Information Computer Basic |
| 3 | Front distribution box |
| 4 | Infrared transmitter, right |
| 5 | Rear-seat display FD2 |
| 6 | Rear power distribution box |
| 7 | antenna diversity module with antenna amplifier |
| 8 | Operation of the remote control system |
| 9 | Video switch |
| 10 | Rear Seat Entertainment RSE Mid |
| 11 | Rear-seat display FD |
| 12 | Infrared transmitter, left |
| 13 | Car Access System |
