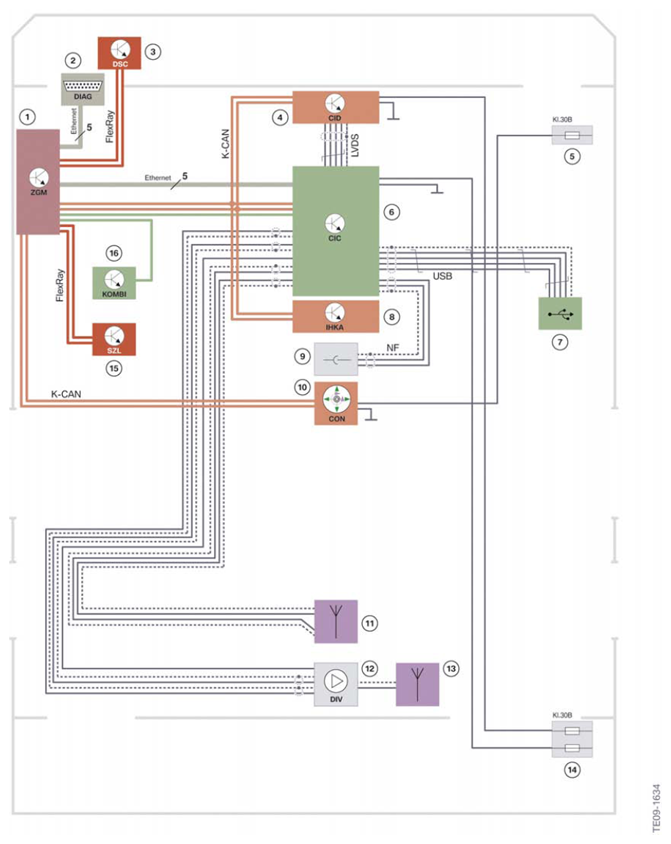

2.1.2. System wiring diagram
COMPONENTS DESCRIPTION CHART
| Index | Explanation |
|---|---|
| 1 | Central Gateway Module |
| 2 | Diagnosis interface |
| 3 | Dynamic Stability Control |
| 4 | Central Information Display |
| 5 | Front power distribution box |
| 6 | Car Information Computer |
| 7 | USB connection in glove box |
| 8 | Integrated automatic heating/air conditioning |
| 9 | Jack plug audio frequency input in the center console for playing back audio files |
| 10 | Controller |
| 11 | Roof-mounted antenna (GPS, SDARS) |
| 12 | antenna diversity module with integrated antenna amplifier |
| 13 | Rear window antenna (FM, AM) |
| 14 | Rear power distribution box |
| 15 | Steering column switch cluster |
| 16 | Instrument cluster |

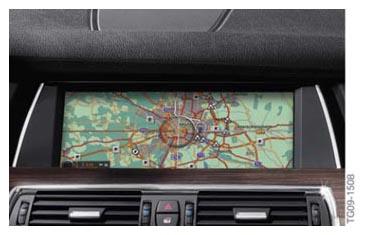

iDrive control screen comes in two versions: with a 7.0" diagonal 800 x 480-pixel resolution as standard equipment, or with the optional Navigation system, in a dazzling 10 2", 1280 x 480-pixel version with a wider range of features and functions as in the new BMW 7 Series.
All F10 come with the 7" CID combined with CIC Basic (without Navigation system) as standard equipment.
The system uses the same iDrive controller as the CIC with Navigation but includes less features like Music Collection or Voice Activation.

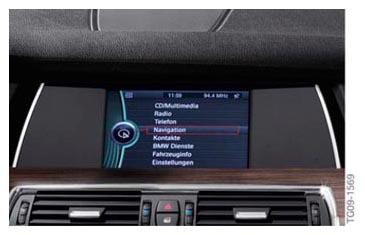

F10 CIC Basic (non Navigation) and 7" diagonal CID.
CIC Basic comes standard equipped with HD Radio as the IBOC decoder is integrated into the CIC hardware.
SDARS (Satellite radio) however is available as an optional extra (option 655)
