13 54 030 Removing and installing/sealing throttle body (N52T)

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD protection).

Necessary preliminary work:

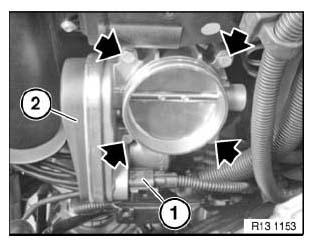

Release connector (1) and remove.

Release screws.

Tightening torque 13 54 1AZ .

Remove throttle body (2).

Fig 1: Locating Throttle Body Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

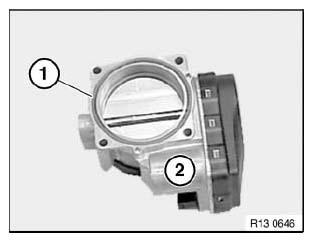

Replace sealing ring (1) of throttle body (2).

Fig 2: Identifying Throttle Body Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check stored fault messages.

Delete fault memory.
