11 61 368 Removing and installing/replacing rear left charge-air duct (N55)

Necessary preliminary tasks:

Installation note:

Ensure locking clamps are correctly fitted.

Lock must engage.

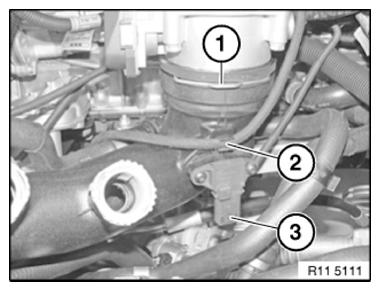

Fig 1: Identifying Left-Hand Charge Air Duct Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock snap fastener (1).

Unclip vacuum hose (2) and lay to one side.

Disconnect plug connection (3).

Installation note:

plug connection (3) must snap audibly into place!

Illustration shows N54.

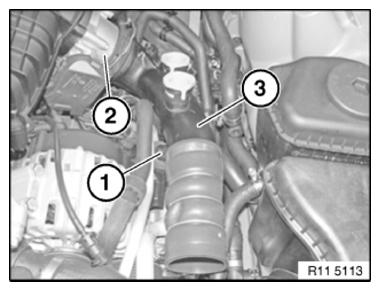

Fig 2: Identifying Vacuum Hose, Snap Fastener And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten hose clamp (2).

Detach rear charge-air duct with gaiter (1) from front charge-air duct (3).

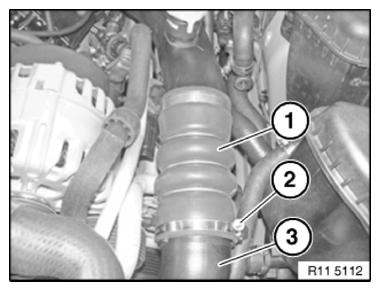

Fig 3: Identifying Charge-Air Duct, Gaiter And Hose Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of breakage!
Bracket (1) of charge-air duct (3) may break during removal.

Carefully lever out bracket (1) with a suitable tool in upward direction.

Detach charge-air duct (3) from intake plenum connection (2) and remove in upward direction.

Installation note:

The gasket inside the snap fastener and bracket (1) must be coated with lubricant.

Charge-air duct (3) must snap audibly into place!

Fig 4: Identifying Charge-Air Duct, Intake Plenum Connection And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
