17 11 035 Removing And Installing/Replacing Fan Cowl With Electric Fan (N57 D30 U/O/T 0/1)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Remove CROSS CONNECTION .

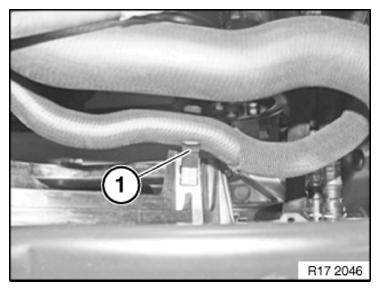

Unclip coolant hose from fan cowl (1).

Fig 1: Coolant Hose And Fan Cowl

G09918256

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1) on fan cowl on right.

Fig 2: Connector On Fan Cowl

G09876459

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip fan cowl (1) at clamps (2) on left and right, thread out in upward direction and remove.

Fig 3: Unclipping Fan Cowl

G06889285

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert retaining tab (1) at bottom on module carrier.

Fig 4: Retaining Tab

G04794056

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check stored fault message.
Reassemble the vehicle.
Delete fault memory.
