36 11 523 Removing and installing/replacing an RDC trigger transmitter (rear)

Necessary preliminary tasks

• Partially detach rear WHEEL ARCH TRIM .

After installation

• Carry out RESETTING  of RDC.

Disconnect plug connection (1).

Release screws (2) and remove trigger transmitter.

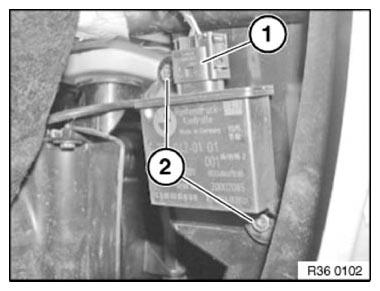

Fig 1: Identifying Trigger Transmitter Screws And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

E90 and E91 from 09/2008:

Disconnect plug connection (1).

Press holder (2) together and detach trigger transmitter (3) towards front.

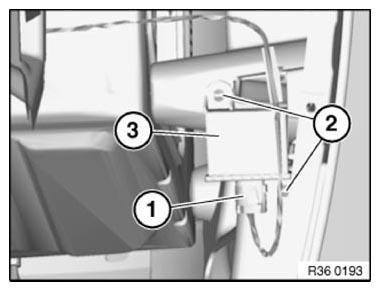

Fig 2: Identifying Trigger Transmitter And Holder

Courtesy of BMW OF NORTH AMERICA, INC.
