32 33 010 Removing and installing/replacing sport steering wheel

NOTE: Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.

Necessary preliminary tasks

Set road wheels/steering wheel to straight-ahead position.

Disconnect plug connection (1).

If necessary, disconnect plug connection (2) for steering wheel heating.

Release screw (3) and remove steering wheel (4).

Installation:

Make sure connecting lead(s) is/are correctly laid.

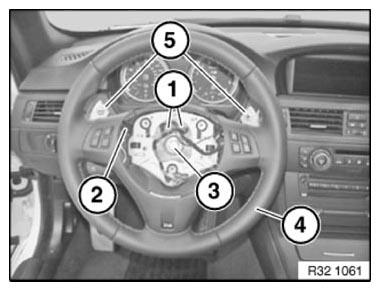

Fig 1: Identifying Sport Steering Wheel Components

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 32 33 1AZ .

Installation:

Installation:

Align sport steering wheel using markings (1) to steering column and attach.

Replacement

Modify sport steering wheel cover/switches . See 61 31 229 REMOVING AND INSTALLING/REPLACING BOTH SWITCHES ON SPORT STEERING WHEEL or 3233... REPLACING COVER FOR SPORT STEERING WHEEL .

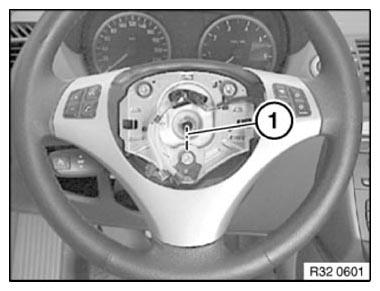

Fig 2: Locating Sport Steering Wheel Markings
Courtesy of BMW OF NORTH AMERICA, INC.
