32 31 020 Removing and installing/replacing lower section of steering column trim
Necessary preliminary tasks
- Remove UPPER SECTION OF STEERING COLUMN TRIM
- Move steering column into "top" and "extended" position and do not secure with adjusting lever

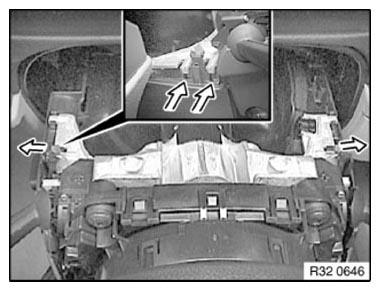

Press detent lugs outwards a litttle and unclip steering column trim downwards.
Installation:
Align steering column trim by means of detent lugs to steering column and press up as far as it will go.
Press steering column trim on both sides together a little and then press upwards completely until detent lugs snap into place.
Check installation position, correct if necessary.
