32 41... Notes on hydraulic line with quick-connect coupling

1) Quick-connect coupling with ID marking

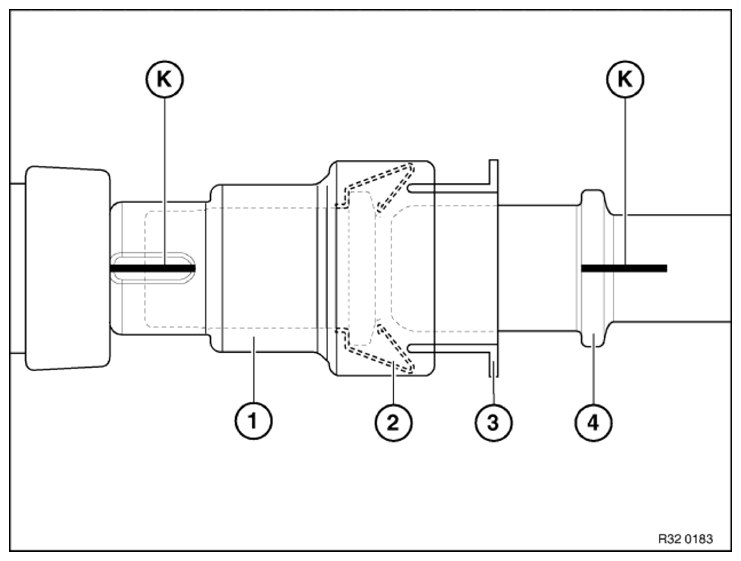

Fig 1: Identifying Quick-Connect Coupling Components
G09837959Courtesy of BMW OF NORTH AMERICA, INC.

2) Quick-connect coupling with indication pins

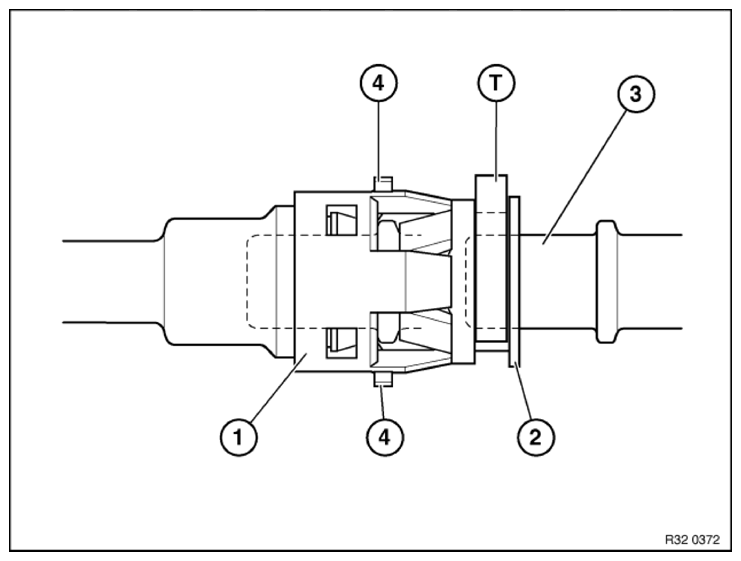

Fig 2: Identifying Quick-Connect Coupling Components With Indication Pins
G09837960Courtesy of BMW OF NORTH AMERICA, INC.
