SI number

WARNING: This page is about a different variant/trim than selected.

02 02 92 (505)

Consisting of:

4 = 0493149 Die-plate
NOTE: For crimping aerial connector (plug connection, aerial cable/radio)
2 = 0492911 Pliers

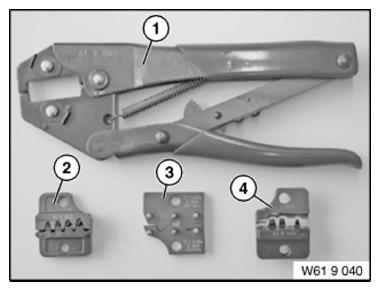

Fig 1: Identifying Die-Plate And Pliers (0492908)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Insulation strippers with wire cutter) replaced by "MultiStrip 10" insulation strippers with BMW order number 81 69 0 416 257. For all information, see Service Information 08 05 06 259.
2 = 0492910 Die-plate
NOTE: For crimping butt connectors and contact sleeves for comb connectors (0.35 - 0.5; 0.75 - 1.00; 1.5; 2.5)
1 = 0492909 Pliers
NOTE: (hand pliers without matrix)
4 = 0495195 Die-plate
NOTE: For crimping 2.5 mm (diameter.) sleeves
