SI number

02 02 94 (807)

Consisting of:

1. 9 = 0492881 Operating instructions

   Note:

2. 5 = 0492880 Adapter cable
   NOTE: (V adapter cable (Elo/ELA), 4-pin, oval, zero-encoded)
3. 4 = 0492879 Adapter cable
   NOTE: (V adapter cable (Elo/ELA), 3-pin, oval, zero-encoded)

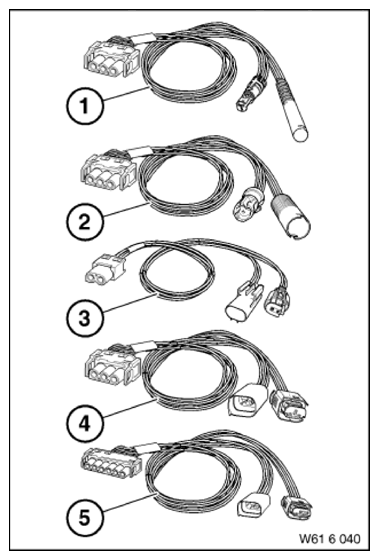

   Fig 1: Identifying Adapter Cable (0492875)

   Courtesy of BMW OF NORTH AMERICA, INC.
4. 3 = 0492878 Adapter cable
   NOTE: (V adapter cable (Elo/ELA), 2-pin, oval, zero-encoded)
5. 2 = 0492877 Adapter cable
   NOTE: (V adapter cable (Elo/ELA), 3-pin, round, zero-encoded)
6. 1 = 0492876 Adapter cable
   NOTE: (V adapter cable (Elo/strand sealing), 3-pin, round (EDC)), discontinued, available as part of set of special tools only
