SI number

WARNING: This page is about a different variant/trim than selected.

02 02 94 (807)

Consisting of:

9 = 0492867 Operating instructions
Note:
6 = 0492866 Adapter cable

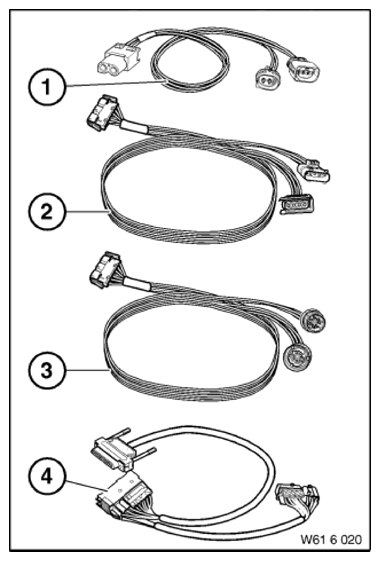

Fig 1: Identifying Adapter Cable (0492860)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (V adapter cable (D 2.5/ELA), 21-pin, hybrid (Elo), black). From 07/2013 also no longer available as part of a set - discontinued.
5 = 0492865 Adapter cable
NOTE: (V adapter cable (D 2.5/ELA), 24-pin, hybrid (Elo), black). From 07/2013 also no longer available as part of a set - discontinued.
4 = 0492864 Adapter cable
NOTE: (V adapter cable (D 2.5/ELA), 7-pin, round, black). From 07/2013 also no longer available as part of a set - discontinued.
3 = 0492863 Adapter cable
NOTE: (V adapter cable (D 2.5/ELA), 4-pin, single row zero-encoded). From 07/2013 again available separately.
2 = 0492862 Adapter cable
NOTE: (V adapter cable (D 2.5/ELA), 4-pin, single row zero-encoded). From 07/2013 again available separately.
1 = 0492861 Adapter cable
NOTE: (V adapter cable (D 2.5/ELA), 2-pin, oval zero-encoded). From 07/2013 again available separately.
