SI number

WARNING: This page is about a different variant/trim than selected.

02 04 01 (710)

Consisting of:

5 = 0494079 Pressure gauge

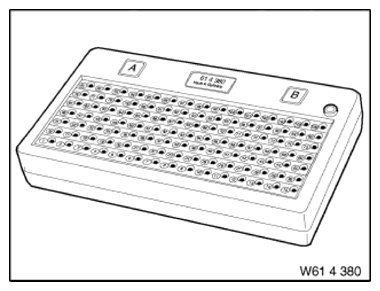

Fig 1: Identifying Measurement Aid (0493962)
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: (Ground cable) For shielding, cable length: 1.5 m. Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only.
4 = 0494078 Line
NOTE: (Measuring cable set) 2/4 mm system, cable length: 200 mm
3 = 0494077 Line
NOTE: (Measuring cable, red) 2 mm system, cable length: 750 mm Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only.
2 = 0494076 Line
NOTE: (Measuring cable, black) 2 mm system, cable length: 750 mm Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only.
1 = 0494075 Measurement aid
NOTE: (Test box, 105-pin) Without accessories. Remaining inventories will be sold off followed by discontinuation and then available as part of complete special tool set 83 30 0 493 962 (61 4 380) only.
