SI number

WARNING: This page is about a different variant/trim than selected.

02 01 10 (615)

Consisting of:

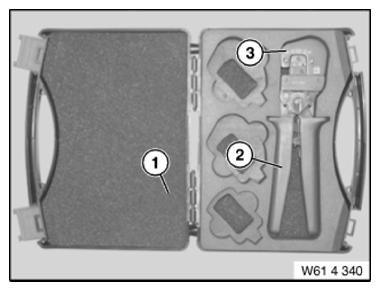

Fig 1: Identifying Crimping Tool (0496833)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0496850 Crimping tool
NOTE: Universal crimping head for contacts up to a conductor cross-section of 0.35 - 2.5 mm² (replaces special tool 61 4 328 as from 03/2010)
2 = 0496849 Handle
Note:
1 = 0496848 Case
NOTE: For storing 61 4 342 and 61 4 343
