Section 8 (General Electrical System - Special Tools - E90)
>>
General Electrical System
>>
61-4325 Crimping tool
>>
0494178 614325 Crimping tool Minimum set: Measuring and testing equipment MP
>>
SI number
SI number
WARNING:
This page is about a different variant/trim than selected.
02 04 06 (293)

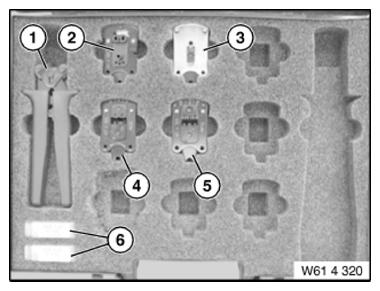

Fig 1: Identifying Crimping Tool (0494178)
Courtesy of BMW OF NORTH AMERICA, INC.
