SI number

WARNING: This page is about a different variant/trim than selected.

02 05 04 (120)

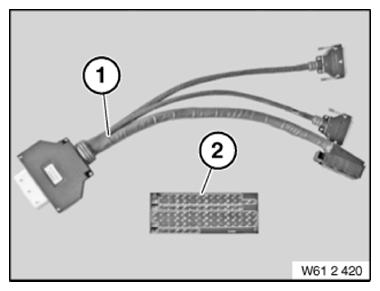

Fig 1: Identifying Adapter Cable (0494882)
G09835659Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

  1. 2 = 0494895 Plate
    NOTE: (cover plate for test box) For assignment of individual modules
  2. 1 = 0494894 Adapter cable
    NOTE: (Adapter cable 88-pin for engine control unit) Individual cable is discontinued; now only available via set 61 2 420 = 0494882 - as of 01 June 2011.
