Storage Location

H 107

Consisting of:

1. 2 = 0492755 Electronics box
   NOTE: (6-fold potential distributor, black)

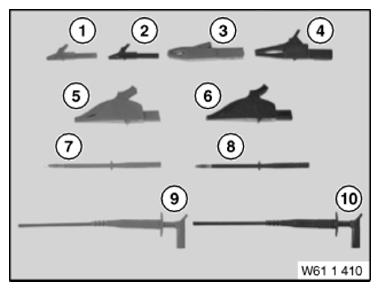

   Fig 1: Identifying Gauge Tip (0492743)

   Courtesy of BMW OF NORTH AMERICA, INC.
2. 1 = 0492754 Tester
   NOTE: (Clamping test probe XB/100, black)
3. 9 = 0492752 Tester
   NOTE: (Clamping test probe XB/100, red)
4. 8 = 0492751 Test probe
   NOTE: (Test probe SPP4-S, black)
5. 7 = 0492750 Test probe
   NOTE: (Test probe SPP4-S, red)
6. 6 = 0492749 Terminal
   NOTE: (Crocodile clip XDK-1033, black). Only available as part of complete tool set 61 1 410 (83 30 0 492 743).
7. 5 = 0492748 Terminal
   NOTE: (Crocodile clip XDK-1033, red). Only available as part of complete tool set 61 1 410 (83 30 0 492 743).
8. 4 = 0492747 Terminal
   NOTE: (Crocodile clip SAGK4, black). Only available as part of complete tool set 61 1 410 (83 30 0 492 743).
9. 3 = 0492746 Terminal
   NOTE: (Crocodile clip SAGK4, red). Only available as part of complete tool set 61 1 410 (83 30 0 492 743).
10. 2 = 0492745 Terminal
    NOTE: (Crocodile clip SAGK4-K, black). Only available as part of complete tool set 61 1 410 (83 30 0 492 743).
11. 1 = 0492744 Terminal
    NOTE: (Crocodile clip SAGK4-K, red). Only available as part of complete tool set 61 1 410 (83 30 0 492 743).
