02 02 05 (194)

Consisting of:

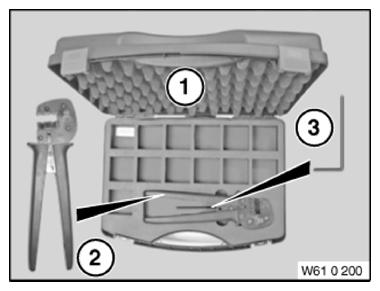

Fig 1: Identifying Crimping Tool (0495320)

Courtesy of BMW OF NORTH AMERICA, INC.

3 = 0495360 Hexagon socket
NOTE: (Allen key) For securing individual matrices in crimping pliers. Liquidation of existing inventory and then available only as a complete tool set 61 0 200 = 83 30 0 495 320 - as of 29.11.2011
2 = 0495324 Pliers
NOTE: (crimping pliers) Basic tool for different matrices (crimp insert set)
1 = 0495321 Case
NOTE: (plastic case) As storage system for complete set. Liquidation of existing inventory and then available only as a complete tool set 61 0 200 = 83 30 0 495 320 - as of 29.11.2011
