65 13 090 Removing and installing/replacing speaker (midrange speaker, door at rear)

Necessary preliminary tasks:

• Remove REAR DOOR TRIM PANEL .

Unscrew nuts (1).

Remove speaker (2) upwards out of rear door trim panel (3).

Tightening torque 65 13 1AZ .

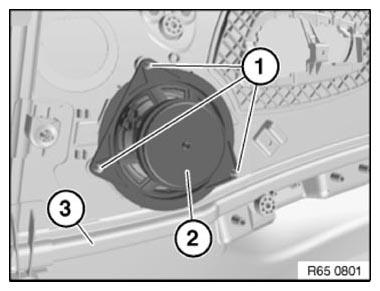

Fig 1: Identifying Rear Door Trim Panel, Speaker And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
