Build date E90/E91 from CW 44/2005

WARNING: This page is about a different variant/trim than selected.
NOTE:
  1. Previous version with adapter lead and external capacitor
  2. New version with integrated capacitor

Adapter lead with capacitor on speaker omitted.

Remove adapter lead completely in each case when replacing.

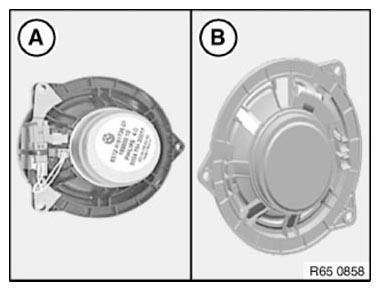

Fig 1: Identifying Speaker
G09840839Courtesy of BMW OF NORTH AMERICA, INC.
