65 13 060 Removing and installing/replacing speaker (midrange speaker, in instrument panel)

WARNING: This page is about a different variant/trim than selected.

Unclip trim for speaker cover (1) at fastening points (2) and (3) and remove

Fig 1: Identifying Speaker Cover And Fastening Points

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove speaker (2).

Disconnect associated plug connection and remove speaker (2) towards top.

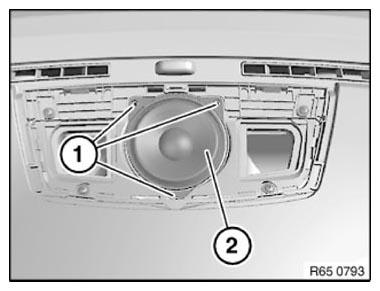

Fig 2: Identifying Speaker And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
