65 24 020 Removing and installing or replacing blocking circuit

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks

Unlock plug connections (1) and disconnect.

Release screw (2).

Remove blocking circuit (3) from C-pillar (4).

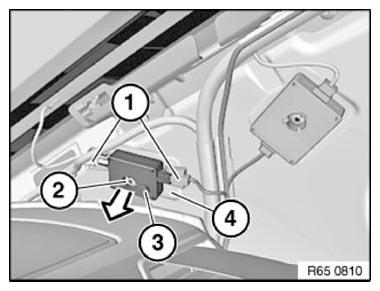

Fig 1: Removing Blocking Circuit From C-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).

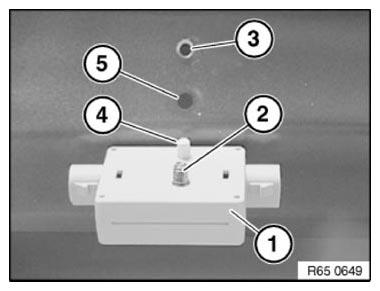

Fig 2: Identifying Blocking Circuit, Thread, Pin, Engages Bore And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
