65 12 220 Removing and installing/replacing satellite tuner (only for US models starting at 09/2009)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary work:

When replacing, please observe

Record SID number (1) of the removed device.

NOTE: The SID number (1) can be found on the label of the housing. Location may be different, depending on the equipment manufacturer.

Record SID number (1) of the new device.

Input enabling code from the Aftersales Assistance Portal, ASAP.

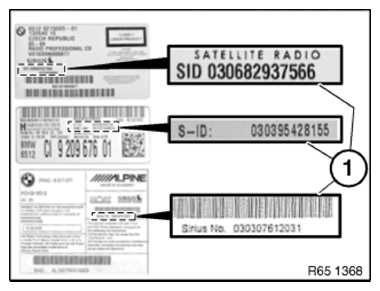

Fig 1: Identifying SID Number
G09840817Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Perform VEHICLE PROGRAMMING/ENCODING .

NOTE: Please contact Sirius. Use the SID number to cancel current device and register new one.
