65 11... Notes regarding the adjustment of the installation position on the CD changer

WARNING: This page is about a different variant/trim than selected.

NOTE: Both suspension springs must be positioned correctly (horizontal/vertical) to ensure trouble-free function of the CD changer. Correct the setting as needed.
The magazine storage flap must always be closed to prevent preliminary contamination of the CD changer.

NOTE: For purposes of clarity, the following graphics show the CD changer removed.

NOTE:

Follow the following repair instructions when the magazine cannot be removed from the CD changer.
- E87, E90, E91:
  The CD changer must be sent in

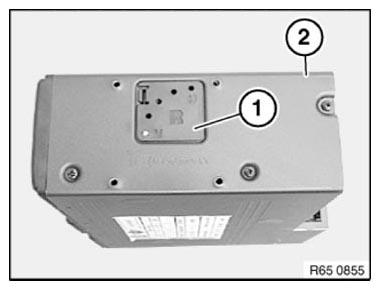

Remove holder (1) from CD changer (2).

Fig 1: Identifying CD Changer And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

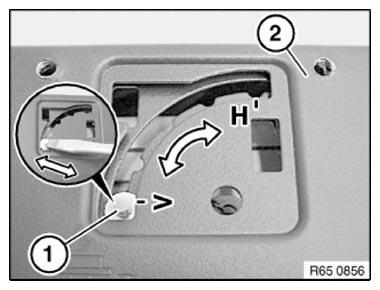

Move the installation position of the CD changer (2) to the required position by sliding the suspension spring (1) with a suitable tool.

Fig 2: Sliding Suspension Spring

Courtesy of BMW OF NORTH AMERICA, INC.
