65 11 080 Removing and installing/replacing radio receiver: Notes

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks

Disconnect BATTERY NEGATIVE LEAD .
Remove CONTROL PANEL FOR HEATING AND A/C SYSTEM .

NOTE: Comply with notes and instructions on HANDLING OPTICAL FIBRES .

Release screws (1).

Pull back radio receiver (2) slightly.

Disconnect associated plug connections and remove radio receiver (2).

Installation:

Make sure the rear guide pin of the radio receiver (2) is correctly seated in the associated mounting.

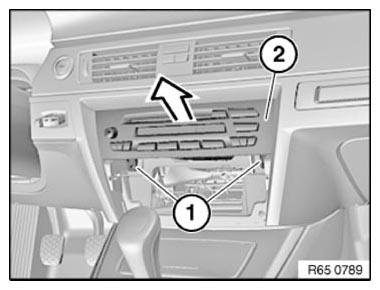

Fig 1: Identifying Radio Receiver And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

For US version only:

If there is a violet antenna connection (1) present in addition to the black antenna connection (2), additional work is required when replacing the radio receiver!

Refer to document REPLACING SATELLITE TUNER !

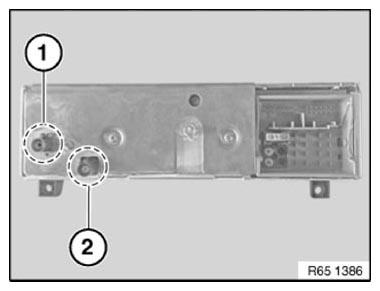

Fig 2: Identifying Antenna Connection And Black Antenna Connection

Courtesy of BMW OF NORTH AMERICA, INC.
