65 12 230 Removing and installing/replacing DAB tuner: Notes
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks
- Disconnect BATTERY NEGATIVE LEAD .
- Remove LUGGAGE COMPARTMENT FLOOR TRIM
.
E93:
- Remove panel for luggage compartment partition

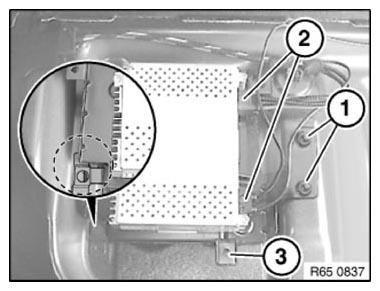

Release screws (1).
Disconnect plug connections (2) and remove bracket with DAB tuner (3).
Installation:
DAB tuner bracket (3) must be inserted in guides.
