65 12 200 Removing and installing (replacing) audio system controller
WARNING: This page is about a different variant/trim than selected.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION)
.
Necessary preliminary tasks
- Disconnect BATTERY NEGATIVE LEAD .
- Remove OPERATOR UNIT FOR HEATER/AIR CONDITIONER (with CCC/ASK).
- Remove CENTRE CONSOLE SWITCH CLUSTER (with CCC/ASK).
NOTE:
Comply with notes and instructions on HANDLING OPTICAL WAVEGUIDES
.

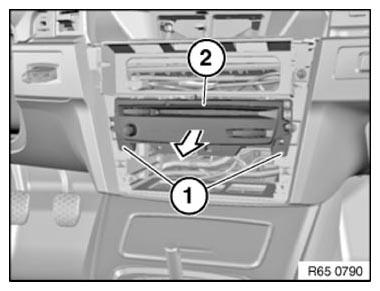

Release screws (1).
Pull back audio system controller (2) slightly.
Unlock associated plug connections and disconnect.
Remove audio system controller (2).
Replacement:
Carry out PROGRAMMING/CODING .
