65 12 070 Removing and installing/replacing amplifier: Replacement

WARNING: This page is about a different variant/trim than selected.

Release screw (2).

Unscrew nuts (4).

Remove amplifier (1) from holder (3).

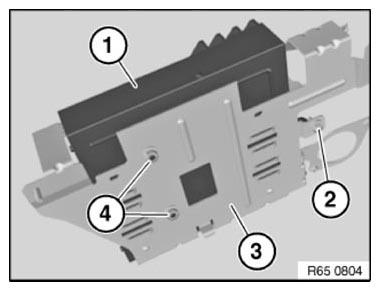

Fig 1: Identifying Amplifier, Holder And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
