65 75 071 Removing and installing (replacing) module for interior movement detector

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with NOTES on protection against electrostatic damage (ESD protection).

Necessary preliminary tasks:

Open retaining hook (1), and detach and remove module for interior movement detector (2) from trim (3) in direction of arrow.

Installation note:

Retaining hooks (1) must not be damaged.

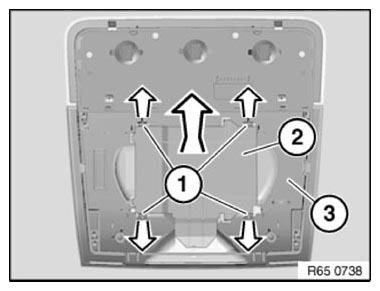

Fig 1: Removing Module Detector From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
