Section 42 (Airbag, Audio, Navigation And Anti-Theft - Repair - E90)
>>
Airbag Control Units, Airbag Sensors
>>
72 12... Overview of airbag modules, airbag control unit, belt tensioners
72 12... Overview of airbag modules, airbag control unit, belt tensioners
WARNING:
This page is about a different variant/trim than selected.

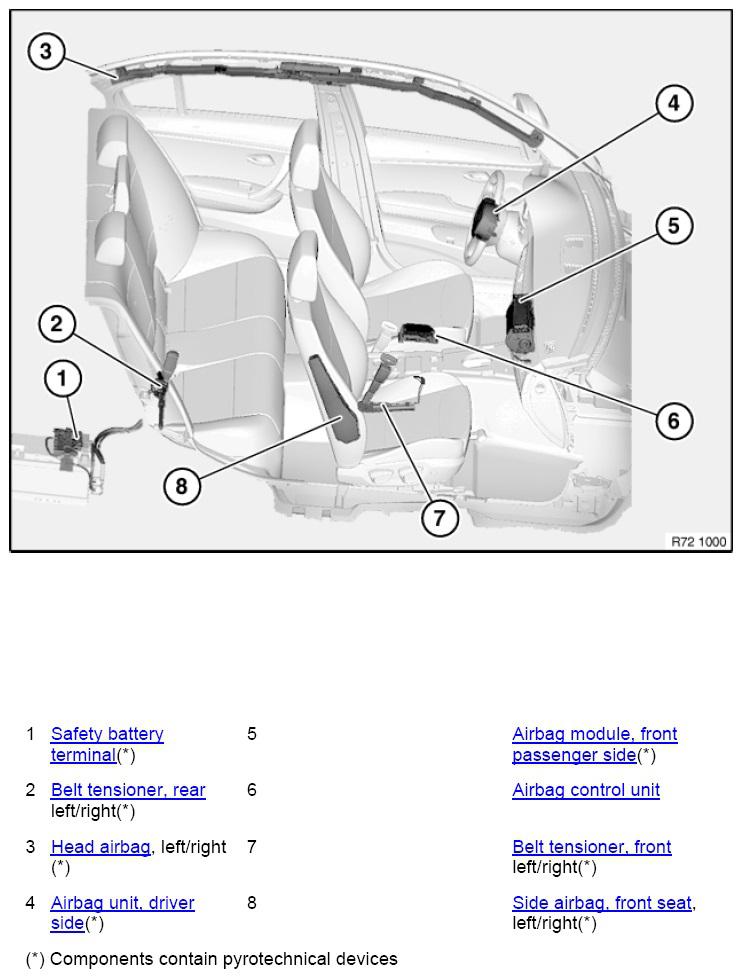

Fig 1: Overview Of Airbag Modules, Airbag Control Unit And Belt Tensioners
Courtesy of BMW OF NORTH AMERICA, INC.
