65 77 740 Removing and installing (replacing) left front door sensor

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS !
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Unfasten plug connection (1) and disconnect.

Release screw (2).

Tightening torque 65 77 7AZ .

Remove sensor with pin (3) from door panel fit (4) towards rear.

Installation:

Make sure fit (3) is correctly seated.

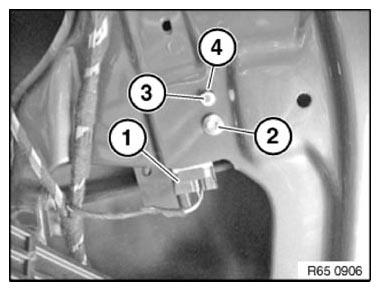

Fig 1: Identifying Sensor, Pinplug Connection, Door Panel And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
