65 77 720 Removing and installing (replacing) left B-pillar sensor

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

WARNING: NOTE AIRBAG SAFETY INSTRUCTIONS!
Incorrect handling can activate airbag and cause injury.

Necessary preliminary tasks:

Release screw (1).

Loosen screw (2).

Installation:

Tightening torque 65 77 5AZ .

If necessary, remove B-pillar sound insulation (5).

Raise B-pillar sensor (3) slightly through opening in B-pillar and feed out towards rear.

Unfasten plug connection (4) and disconnect.

Remove B-pillar sensor (3) from B-pillar.

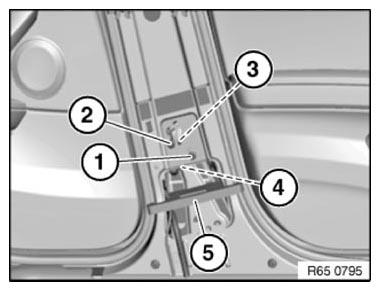

Fig 1: Identifying B-Pillar Sensor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Establish correct positioning of B-pillar sensor (1) by means of guide pin (2) and screw (3).

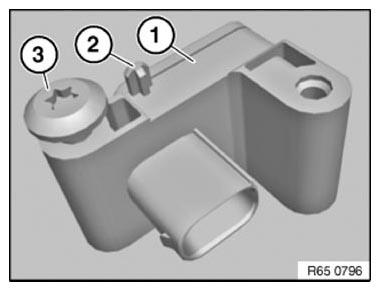

Fig 2: Identifying B-Pillar Sensor, Guide Pin And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
