65 77 541 Removing and installing/replacing front left or right acceleration sensor

WARNING: This page is about a different variant/trim than selected.

NOTE: Acceleration sensor only fitted in US version!

Unlock plastic fasteners (1) by turning counterclockwise through 180°.

Feed flap (2) in direction of arrow out of front wheel arch cover (3) and remove.

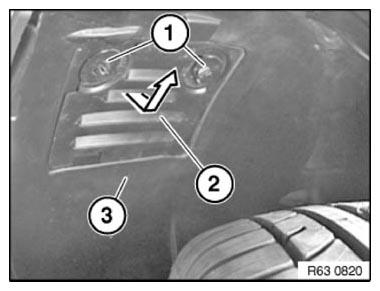

Fig 1: Removing Front Wheel Arch Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove acceleration sensor (2).

Disconnect plug connection (3).

Installation:

Replace screws (1).

Tightening torque 65 77 9AZ .

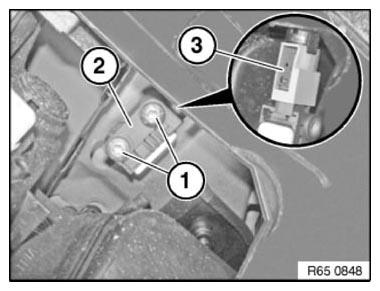

Fig 2: Identifying Acceleration Sensor, Plug Connection And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
