63 99 072 Replacing halogen bulb for left or right headlight (from version 9/2008)

WARNING: This page is about a different variant/trim than selected.

WARNING: Comply with notes on handling bulbs.

Unlock and remove cover (1).

Fig 1: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Turn protective cap (1) counterclockwise and remove.

IMPORTANT: Risk of damage due to moisture penetration!

Installation note:

Check seal. Replace protective cap (1) if necessary.

Protective cap (1) must lock correctly!

Turn the protective cap (1) clockwise to end stop (A)!

Fig 2: Identifying Protective Cap And Seal

Courtesy of BMW OF NORTH AMERICA, INC.

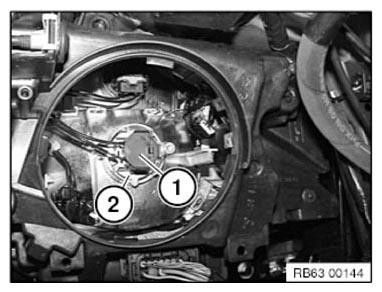

Turn bulb holder (1) in direction of arrow and pull out towards rear.

Installation note:

Make sure retaining tabs (2) in headlight are correctly seated.

Fig 3: Identifying Bulb Holder And Retaining Tabs

Courtesy of BMW OF NORTH AMERICA, INC.

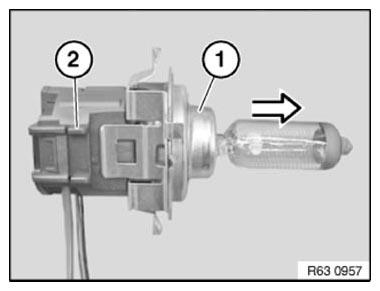

Detach bulb (1) from bulb holder (2).

Installation note:

Note bulb type.

Fig 4: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Recommendation:

Check HEADLIGHT ADJUSTMENT , correct if necessary.
