63 11... Installing headlight repair kit

Necessary preliminary work:

• Remove headlight.. See XENON HEADLIGHT  or ADAPTIVE HEADLIGHT .

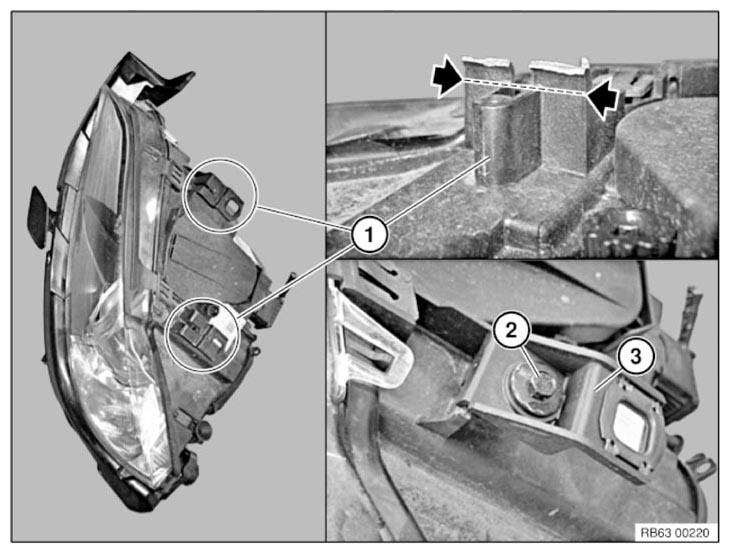

  Fig 1: Identifying Damaged Holder, Repair Kit And Mounting Screw

  Courtesy of BMW OF NORTH AMERICA, INC.

Remove damaged holder(1) as far as the line identified with arrows.

Fit holder from repair kit (3) as illustrated and tighten the screw (2).

After installation:

• ADJUST HEADLIGHTS
