Removing The Wheel Arch

WARNING: This page is about a different variant/trim than selected.

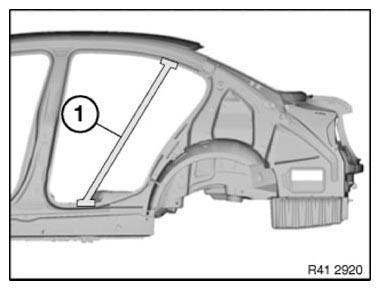

Affix door aperture at the dot weld flanges using supporting strut (1).

Fig 1: Identifying Supporting Strut

Courtesy of BMW OF NORTH AMERICA, INC.

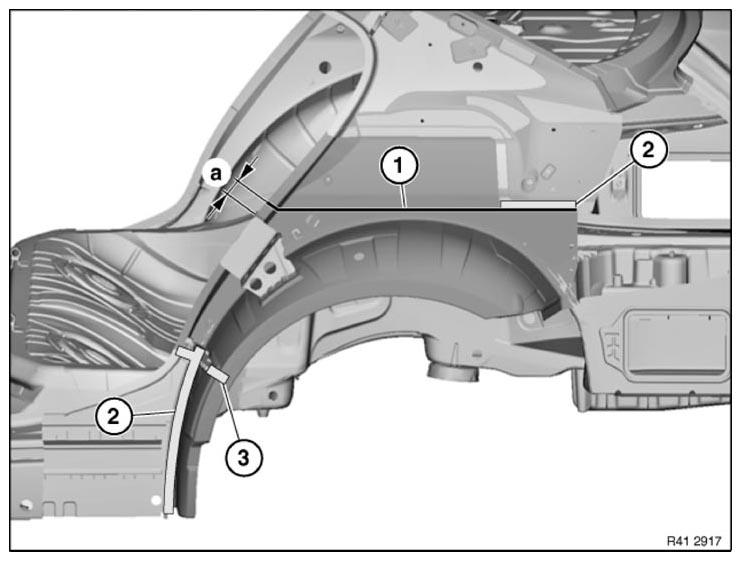

Fig 2: Identifying Severance Cut, Cavity Sealing And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.
Dimensions a = approx. 140 mm from roof edge.
Open welded connections in areas (2).

Installation note:

Apply window glass adhesive to CAVITY SEALING (3).

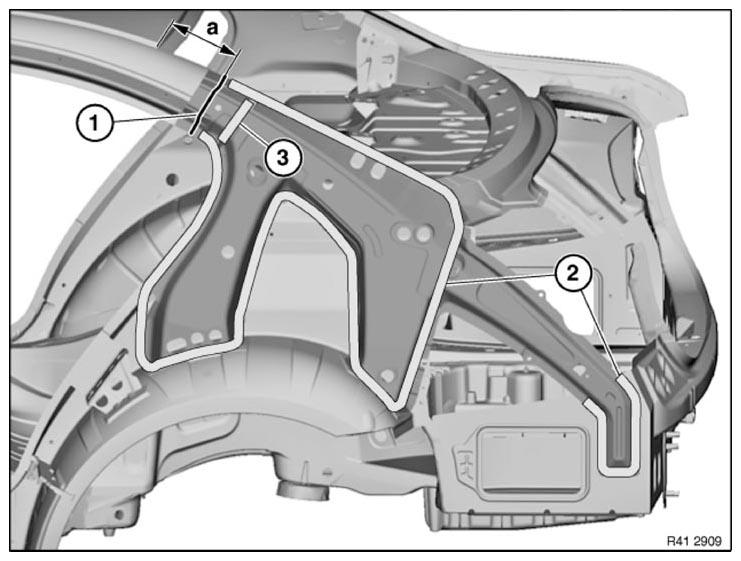

Fig 3: Identifying Severance Cut, Cavity Acoustic Baffle And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.
Dimension a = approx. 30 mm from lock striker reinforcement.
Open welded connections in areas (2).

Installation note:

Apply window glass adhesive to CAVITY ACOUSTIC BAFFLE (3).

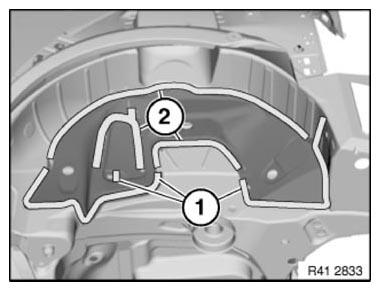

Open welded connections in areas (1).

Installation note:

Weld new components in areas (2) additionally.

Fig 4: Identifying Welded Connections And Components Areas

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Storage shelf not shown.

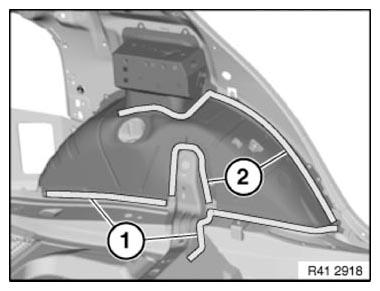

Open welded connections in areas (1).

Installation note:

Weld new components in areas (2) additionally.

Fig 5: Identifying Welded Connections And Weld Component Areas

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Storage shelf not shown.

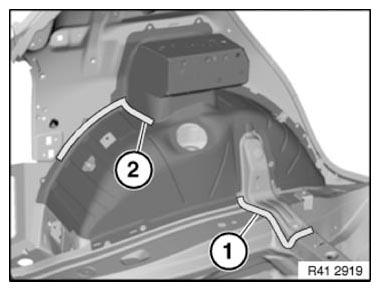

Open weld joints in area (1).

Installation note:

Weld new components in area (2) additionally.

Fig 6: Identifying Weld Joints And Component Areas

Courtesy of BMW OF NORTH AMERICA, INC.
