Removal Of The Outside Wheel Arch

WARNING: This page is about a different variant/trim than selected.

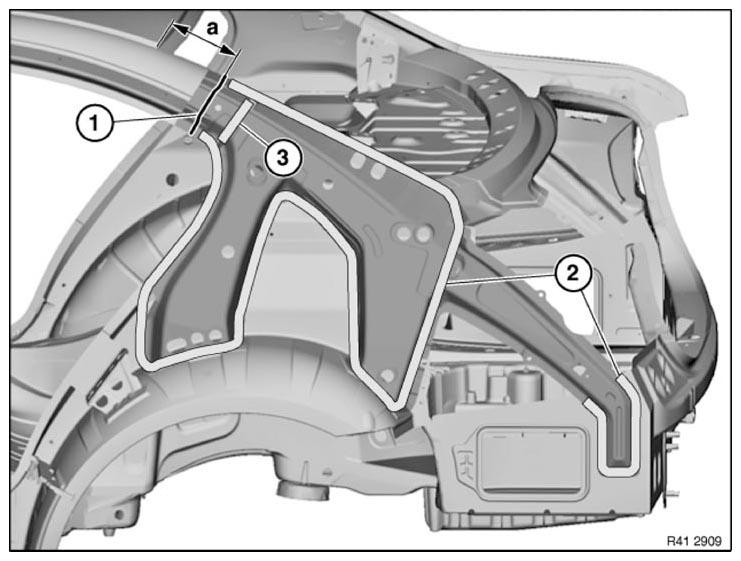

Fig 1: Identifying Roof Edge Dimensions
G09838777Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.
Dimensions a = approx. 140 mm from roof edge.
Open welded connections in areas (2).

Installation note:

Apply window glass adhesive to cavity sealings  . See 4100... INSTALLING CAVITY SEALING (EXPANDED)  or 4100... INSTALLING CAVITY SEALING (NOT EXPANDED)  (3).

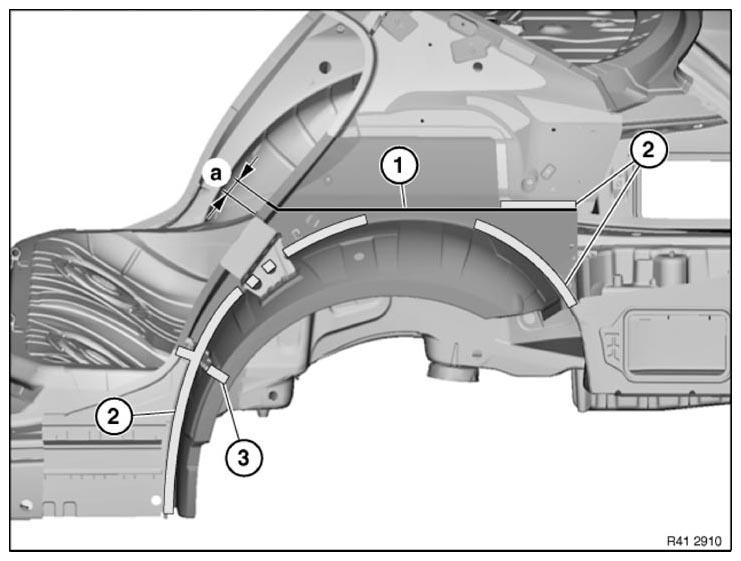

Fig 2: Identifying Dimension From Lock Striker Reinforcement Dimension
G09838778Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with specified dimension and cut.

IMPORTANT: Cut outer panel only.
Dimension a = approx. 30 mm from lock striker reinforcement.
Open welded connections in areas (2).

Installation note:

Apply window glass adhesive to cavity sealing (3).
