Preparation Of New Part

WARNING: This page is about a different variant/trim than selected.

Open welded connections in area (1).

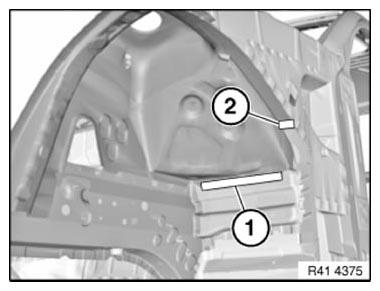

Fig 1: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) cut open engine support from opposite side and open welded connections.

In area (2) open welded connections from inside.

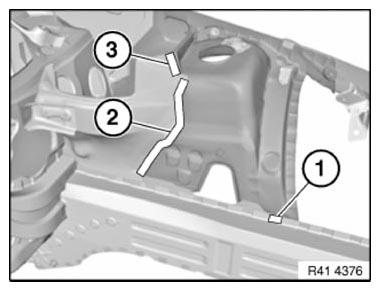

Fig 2: Identifying Engine Support And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts to fit with alignment bracket or universal mount and secure.

In areas (1) to (3) set 6.8 mm dia. bore holes for blind rivets N1:

Installation note:

After adhesive has hardened install 2 EMC SCREWS in areas (1) and (2).

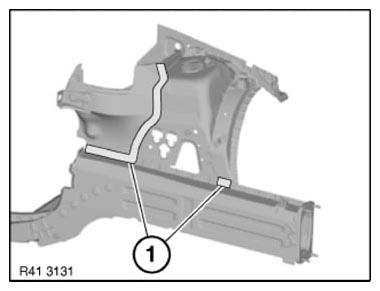

Fig 3: Identifying Bore Holes And EMC Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2) set 6.8 mm dia. bore holes for blind rivets N1:

Area (1): 3 bore holes
Area (2): 2 bore holes

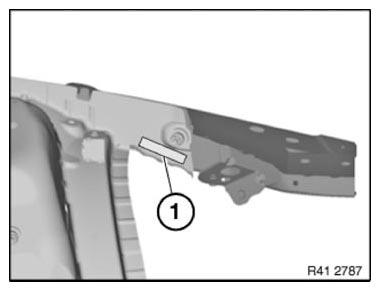

Fig 4: Identifying Bore Holes Area Of Blind Rivets
Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2) set 6.8 mm dia. bore holes for blind rivets N1:

Installation note:

In area (3) 2 N5 punch rivets are used later.

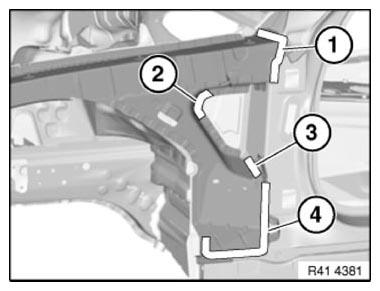

Fig 5: Identifying Punch Rivets And Bore Hole Area

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (4) set 6.8 mm dia. bore holes for blind rivets N1:

Installation note:

After adhesive has hardened install 2 EMC screws in areas (1) and (4).

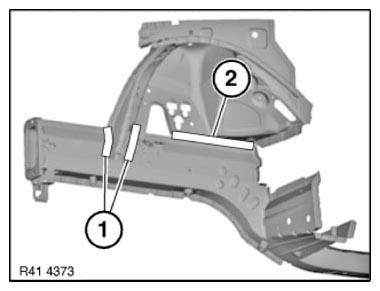

Fig 6: Identifying Bore Holes And EMC Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set two 6.8 mm dia. holes for blind rivets N1 in area (1).

Remove all new parts and deburr holes.

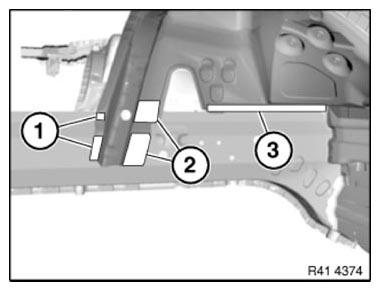

Fig 7: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Structure bonding!
OBSERVE preparation of bonding surfaces.
