Removing Carrier Support

WARNING: This page is about a different variant/trim than selected.

IMPORTANT: Cut outer metal panel only.

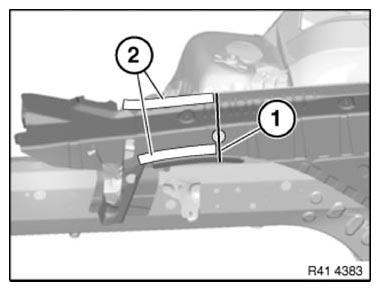

Mark severance cut (1) through 20 mm dia. hole and cut carrier support.

Open welded connections in areas (1).

Fig 1: Identifying Severance Cut And Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

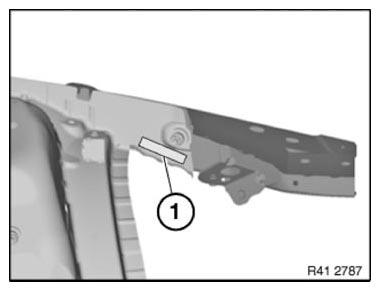

Open welded connections in area (1).

Remove carrier support section.

Fig 2: Identifying Welded Connections Area Of Carrier Support Section

Courtesy of BMW OF NORTH AMERICA, INC.
