Installing Carrier Support

WARNING: This page is about a different variant/trim than selected.

Clean all bonding surfaces (1) on vehicle and on new part with cleaning agent R1.

Apply adhesive K5a to bonding surfaces.

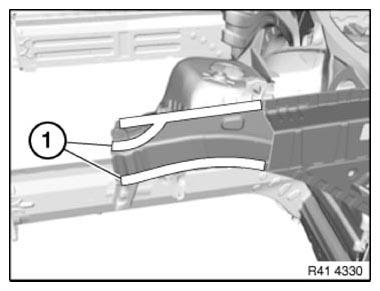

Fig 1: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Install new part with add-on parts and rivet.

IMPORTANT: Three-sheet-metal combination in area (1)!
In area (1) rivet new part on both sides offset with 4 punch rivets N5.

In area (2) rivet new part with 2 punch rivets N5.

Use 6 punch rivets N5 in area (3).

In area of reinforcement plate (4) use 6 blind rivets N3.

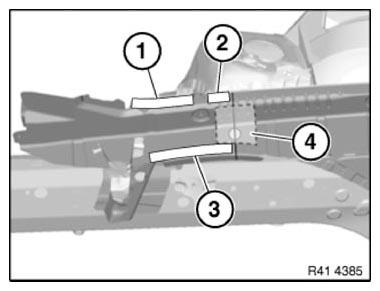

Fig 2: Identifying Sheet-Metal Combination, Punch Rivets N5 Area And Reinforcement Plate

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) rivet new part with 2 blind rivets N1.

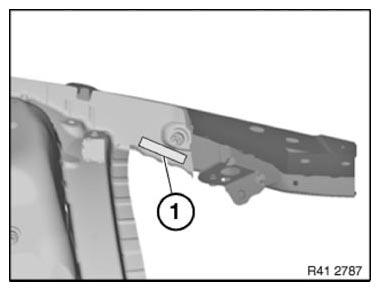

Fig 3: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.
