Removal Of Front Section Of Engine Support With Wheel Arch

WARNING: This page is about a different variant/trim than selected.

Mark severance cut (1) in front of holder (2) and cut (holder (2) remains on vehicle).

Open welded connections in area (3).

Installation note:

Mark severance cut (1) in on new part and cut. Take off holder (2).

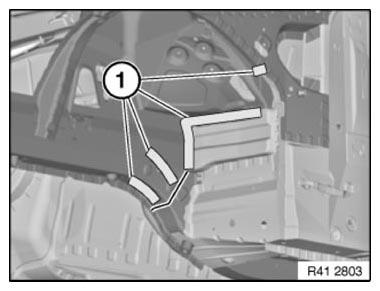

Fig 1: Identifying Severance Cut, Cavity Sealing And Front Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension a and cut engine support.

IMPORTANT: Cut outer metal panel only.

Dimension a=130 mm from front edge of bush

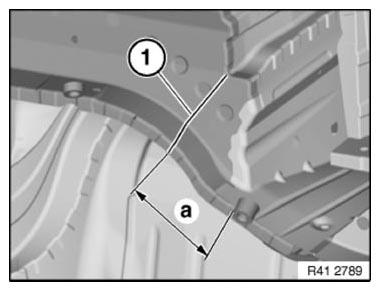

Fig 2: Identifying Front Edge Of Bush Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

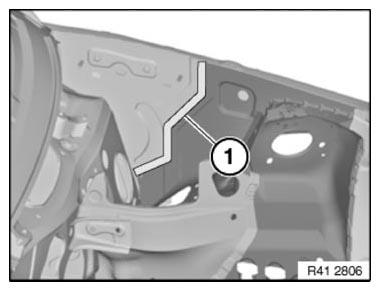

Fig 3: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

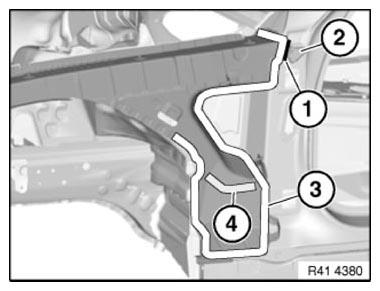

Fig 4: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Installation note:

If equipment compartment partition wall (2) is damaged, cut along line (3).

Mark severance cut on new part according to severance cut on vehicle + 20 mm material extra and cut.

Bond both parts overlapping and rivet. Depending on accessibility, use punch rivets N4 and blind rivets N3.

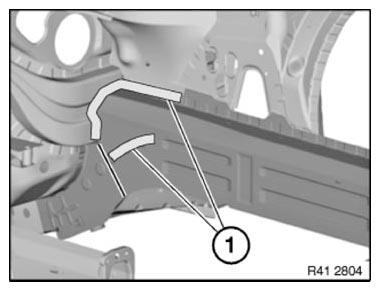

Fig 5: Identifying Compartment Partition Wall, Line And Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Remove front section of engine support with wheel arch.

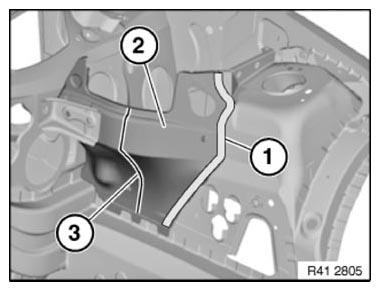

Fig 6: Identifying Welded Connections Area Of Front Section Of Engine Support
