Preparation Of New Part

WARNING: This page is about a different variant/trim than selected.

Mark and cut the severance cut on new part as per the severance cut on the vehicle.

Prepare REINFORCEMENT PLATES at severance cut.

Open welded connections in areas (1) on both sides.

Open welded connections in area (2).

Detach remainder of reinforcement from engine support.

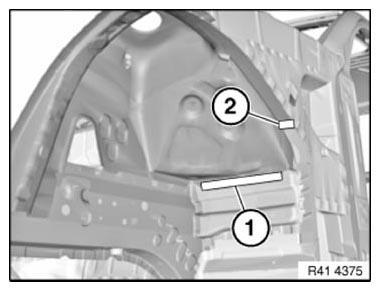

Fig 1: Identifying Welded Connections Areas On Both Sides

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Take off holder.

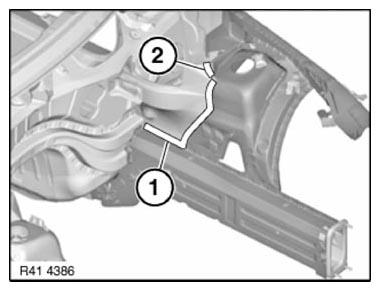

Fig 2: Identifying Welded Connections Areas Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new parts to fit with alignment bracket or universal mount and secure.

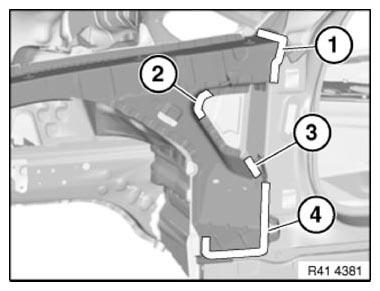

Fig 3: Securing Alignment Bracket Or Universal Mount

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set ten 6.8 mm dia. bore holes for blind rivets N1.

Installation note:

In area (2) 2 N5 punch rivets are used later.

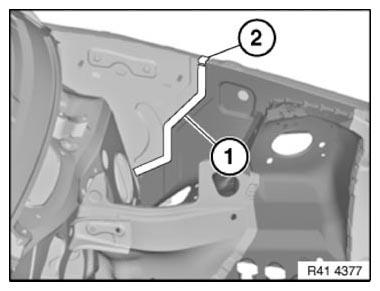

Fig 4: Identifying Bore Holes Area Of Blind And Punch Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2) set 6.8 mm dia. bore holes for blind rivets N1:

Area (1): 3 bore holes
Area (2): 2 bore holes

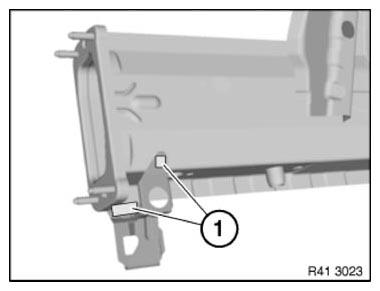

Fig 5: Identifying Bore Holes Area Of Blind Rivets
Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) set seven 6.8 mm dia. bore holes for blind rivets N1.

Installation note:

In area (2) 1 N5 punch rivet is used later.

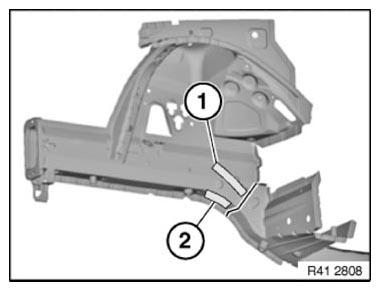

Fig 6: Identifying Bore Hole Area Of Blind And Punch Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (4) set 6.8 mm dia. bore holes for blind rivets N1:

Open welded connections in area (1).

Installation note:

After adhesive has hardened install 2 EMC SCREWS in areas (1) and (4).

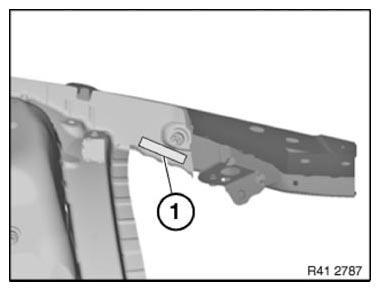

Fig 7: Identifying Welded Connections And EMC Screws Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set two 6.8 mm dia. holes for blind rivets

N1 in area (1).

Remove all new parts and deburr holes.

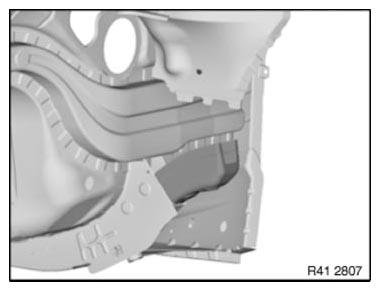

Fig 8: Identifying Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Structure bonding!
OBSERVE preparation of bonding surfaces.
