Removing Side Panel

WARNING: This page is about a different variant/trim than selected.

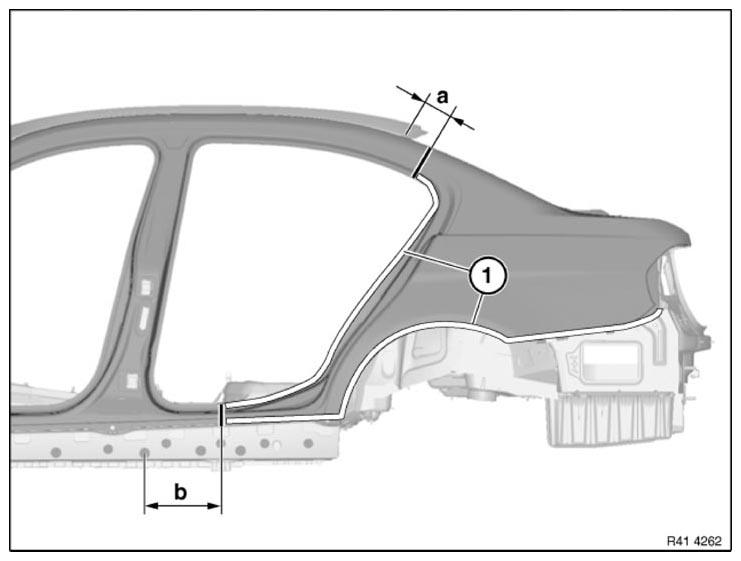

Fig 1: Identifying Side Panel Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only.
Before loosening the wheel arch welding connections:
Straighten wheel arch edge similarly to new part.
Compare position of severance cuts with REINFORCEMENT PLATES .
Dimensions a = approx. 110 mm from roof edge.

Dimension b = approx. 250 mm to centrepoint of 25 mm diameter hole.

Open welded connections in areas (1).

NOTE: In addition to the dimensions, the position of the separating cut can be determined with a TEMPLATE (1).

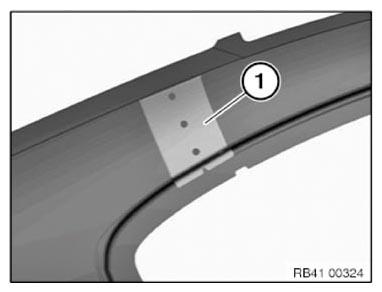

Fig 2: Identifying Template

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Open brazed connections in areas (2).

Release side wall from cavity sealing and remove.

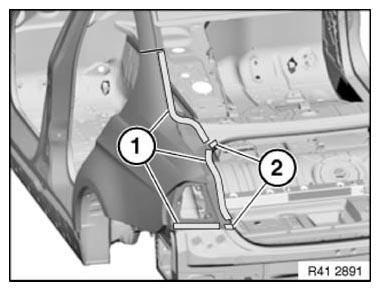

Fig 3: Identifying Welded And Brazed Connections Areas
