Removing Carrier Support

WARNING: This page is about a different variant/trim than selected.

Mark severance cut (1) in accordance with dimension a and cut.

Dimension a=125 mm

IMPORTANT: Clean engine support - measured min. 50 mm from cutting edge - thoroughly with cavity sealing wax remover.

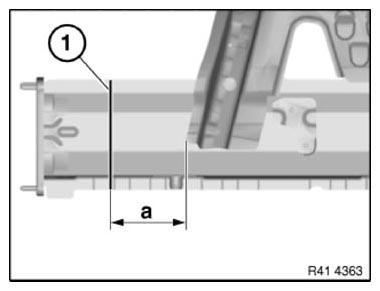

Fig 1: Identifying Carrier Support Dimension
G09838618Courtesy of BMW OF NORTH AMERICA, INC.
