Preparation Of New Part

WARNING: This page is about a different variant/trim than selected.

Open welded connections in areas (1).

Take off holder.

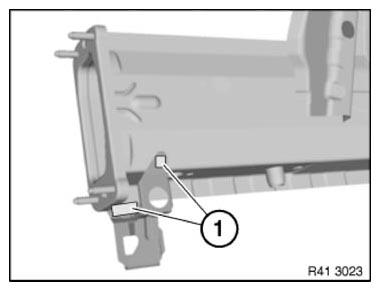

Fig 1: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with severance cut on vehicle and cut.

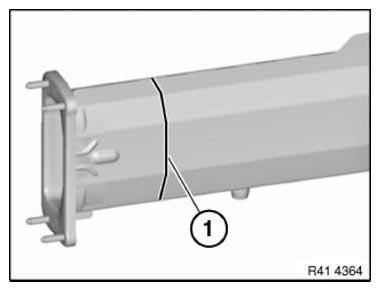

Fig 2: Identifying Severance Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections on holder (1) by grinding with a belt grinder from inside.

Take off holder (1).

NOTE:

The inner surfaces of the engine support must be smooth. If necessary, surface-grind existing raised areas.

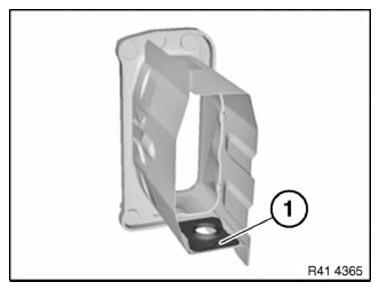

Fig 3: Identifying Welded Connections On Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new part to fit with set of attachments or universal mount.

Drill hole (1) at side.

Take hole position from repair element.

Hole diameter 12 mm

Remove new parts.

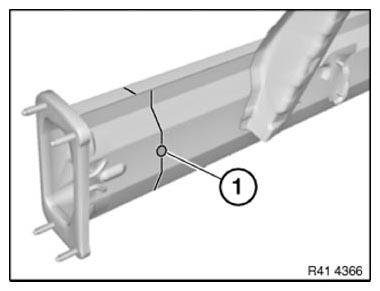

Fig 4: Identifying Drill Hole
