New Part Preparation

Mark severance cuts on the new part according to vehicle and cut.

Prepare REINFORCEMENT PLATES  at all severance cuts.

Adjust new part to fit and secure.

Set 4.2 mm dia. bore holes for blind rivets in areas (1) and (2).

Area (1): 5 bore holes

Area (2): 6 bore holes

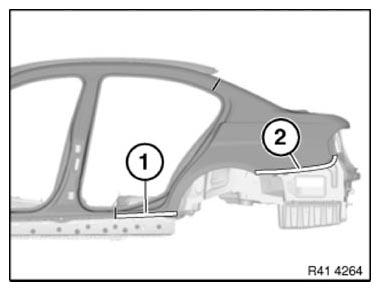

Fig 1: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.

Set 4.2 mm diameter bore hole for blind rivets in bulkhead of jacking point in the area (1).

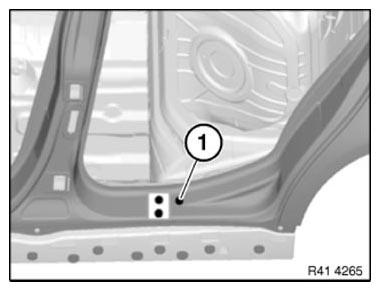

Fig 2: Identifying Bulkhead Of Jacking Point

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) and (2) set 4.2 mm dia. bore holes for blind rivets.

Area (1): 4 bore holes

Area (2): 1 bore hole

Remove new part again and deburr bore holes.

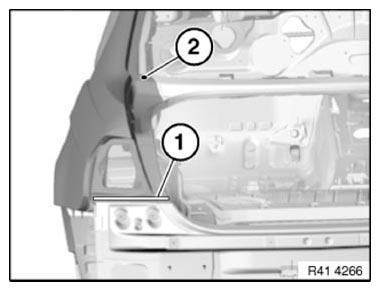

Fig 3: Identifying Bore Holes Area

Courtesy of BMW OF NORTH AMERICA, INC.
