Side Frame And Door Pillars Preparation Of New Part
WARNING: This page is about a different variant/trim than selected.
Mark new part in accordance with severance cuts above and cut.
Installation:
Adjust new part to fit with straightening attachment or universal mount.
Weld in REINFORCING PANELS at all severance cuts.

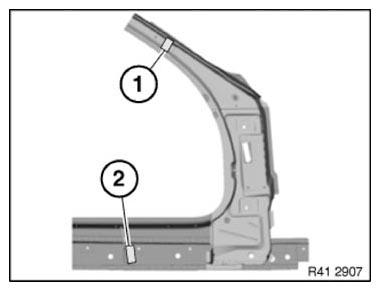

Apply window glass adhesive to cavity acoustic baffle . See 4100... INSTALLING CAVITY SEALING (EXPANDED) or 4100... INSTALLING CAVITY SEALING (NOT EXPANDED) (1).
Apply ADHESIVE in area (2).
