Removing Tail Panel

WARNING: This page is about a different variant/trim than selected.

Carry over the work steps shown symmetrically to the other side of the car.

Open welded connections in area (1) from inside.

Open welded connections in area (2).

Open brazed joints in areas (3).

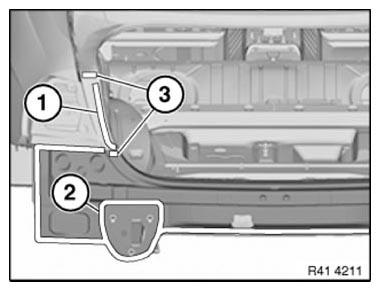

Fig 1: Identifying Welded Connections And Brazed Joints Areas

Courtesy of BMW OF NORTH AMERICA, INC.
