Preparation Of New Part

WARNING: This page is about a different variant/trim than selected.

Slide in rear trim panel (1) from bottom upwards. Adjust in combination with tailgate and rear lights to fit and secure.

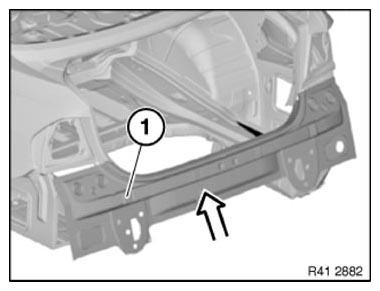

Fig 1: Identifying Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Retaining screws must not be used in area (1)

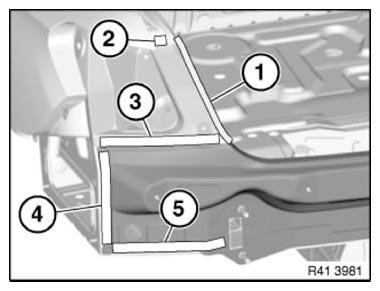

In areas (2) to (5) set 4.2 mm bore holes for blind rivets N3:

Fig 2: Identifying Bore Hole Areas For Blind Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove new part and deburr holes.

IMPORTANT: Do not grind/sand new part in area of bonding surfaces.
