Removal Of Luggage Compartment Floor

WARNING: This page is about a different variant/trim than selected.

Mark severance cuts (1) and cut.

IMPORTANT: Cut only outer panels.

Open welded connections in areas (2) and remove luggage compartment floor (3).

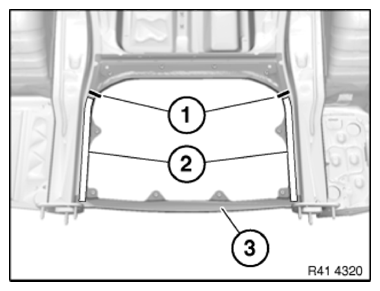

Fig 1: Identifying Severance Cuts, Welded Connection Areas And Luggage Compartment Floor
G09838836Courtesy of BMW OF NORTH AMERICA, INC.
